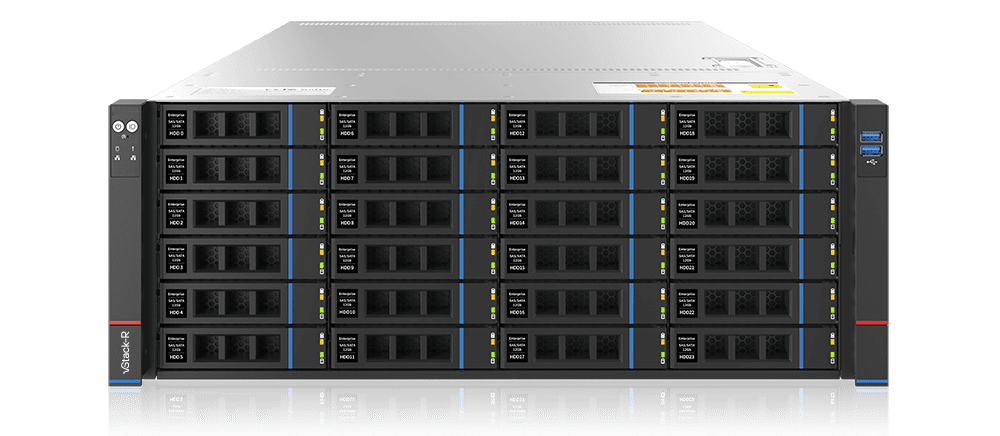

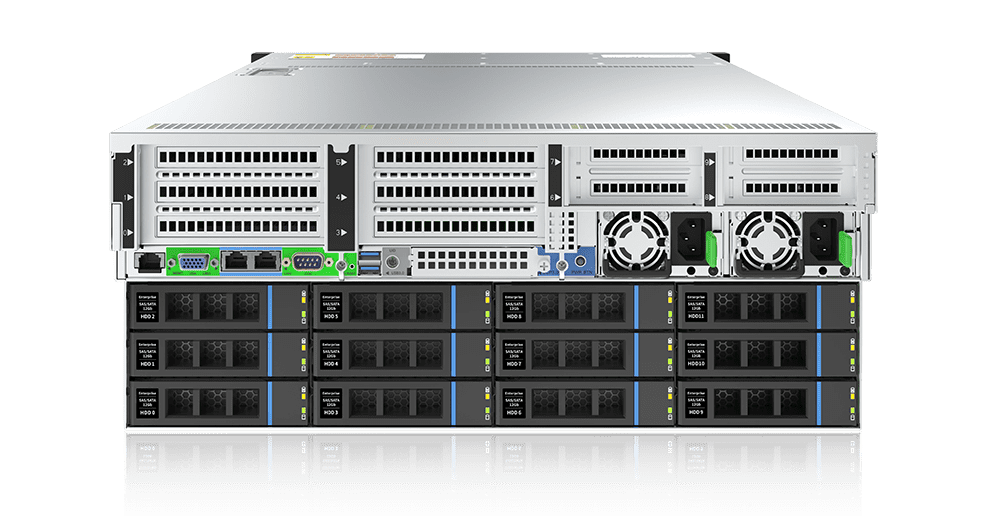

vStack-R-SL401-D36RE-G3
High performance
- Up to two (2) Intel Xeon Scalable Gen3 processors, each up to 270W (Ice Lake).
- 32 DDR4 ECC 3200 MHz (RDIMM/LRDIMM) memory slots, including support for up to 16 Intel Optane 200 Series non-volatile memory modules (PMem).
Specification
vStack-R-SL401-D36RE-G3
| Server model | vStack-R-SL401-D36RE-G3 |
|---|---|
|
Processor
|
2 x Gen3 Intel® Xeon® Xeon® Scalable ICE Lake, 83xx/63xx/53xx/43xx processors, maximum processor TDP 270W
|
|
Chipset
|
Intel® C621 A-Series
|
|
Memory
|
32 DDR4 slots, supports DDR4 2666/2933/3200 MHz memory
|
|
Storage management
|
Internal PCH supports RAID 0110&5 External HBA (non-RAID): 12 Gbps SAS HBA
|
|
Storage
|
Front: 24 x 3.5/2.5″ SAS/SATA hot-swap disks Rear panel: Optional four 3.5″ SAS/SATA disks or four 2.5″ SAS/SATA/U.2 disks. Internal Storage: Two NVMe PCIe 3.0 x4 M.2 ports, two SATA 7PIN slots (with SATA DOM support) and three MiniSAS HD ports
|
|
Network
|
2 x 1GbE (RJ45)
|
|
I/O ports
|
Front panel: 2x USB2.0 Rear panel: 1 VGA, 2 USB3.0, 1 network management port, 2 RJ45 network ports OCP slot: 1 OCP 3.0 (PCIe x 8)
|
|
PCIe expansion
|
До 10 слотов PCIe 4.0 (6 – full height, 4 – half height).
|
|
Power source
|
Supports 550W, 800W, 1300W, 1600W, 2000W, 2200W backup power
|
|
Cooling
|
4 x 80mm x 38mm fans (N+1)
|
|
Management
|
Built-in iBMC management module, support IPMI, SOL, KVM Over IP, virtual media and other management functions
|
|
Safety
|
TPM/TCM (optional) Open chassis intrusion detection; locking of chassis top cover
|
|
Operating system
|
Microsoft Windows Server、Red Hat Enterprise Linux、 SUSE Linux Enterprise Server、CentOS、Ubuntu
|
|
Server size
|
798 x 433.4 x 176.5 mm (L x W x H)
|
|
Operating temperature
|
Operating temperature: 5ºC - 35ºC (indoors) Storage temperature: -40ºC - 70ºC
|
